20-120 Ton Lowbed Semi Truck Trailer Dimensions

Type: 3/4 axles 50/70 ton low bed trailer
Delivery: 7-28 days
Dimensions: customized
Application: to carry excavator, wheel loader or other machinery


Low bed trailer meaning

low bed trailer is known as a lowboy trailer, low bed lorry, or lowboy truck. There are generally used to transport construction machinery and large equipment. Typically, many places are limited, especially on some bridges. The use of flatbed trailers cannot be transported, so people use low-bed trailers for transportation.

All low bed truck capacities can be customized.

Lowbed trailer dimensions
2 axles low bed trailer truck dimensions: 13000x3000x1750/1250 mm
3 axle low loader trailer measurements: 13500x3000x1700/1250 mm
3 axle heavy duty low bed trailer standard size: 14000x3000x1750/1250 mm
All low bed trailer dimensions can be customized.
Low bed trailer weight
2 axles low flatbed trailer weight: 9-11 ton
Triple axle lowboy trailer weight: 10-11 ton
4 axles low bed trailer weight: 10-12 ton
lowboy trailer 5 axle weight: 11-12 ton
8 axle low high bed trailers weight: 12-14 ton

All low bed truck weights can be customized.

Low bed trailer width
3000mm, 3 meters, Most used
low bed trailer maximum length
16000 mm
low bed trailer height from the ground: 850-1250 mm
low bed trailer max-height: 1750 mm
Semi low bed trailer length
850-1250 mm, customized to your needs.
low bed trailer maximum height: 1250 mm, 1.25 meter

Low bed trailer main beam

Main beam thickened: 500mm.
Main Beam width: 300mm.
Side beam
Height: 300mm;
Thickness: 10mm.

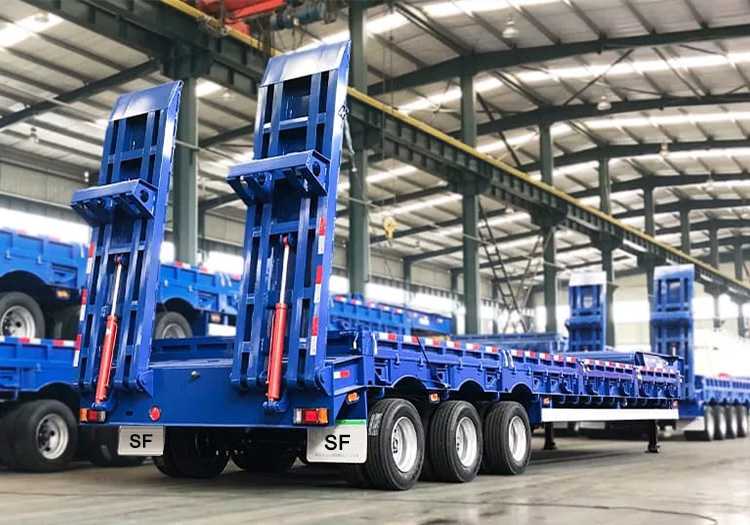

20-120 Ton Lowbed Truck Trailer Dimensions-3
20-120 Ton Lowbed Semi Truck Trailer


Low bed trailer axle

BPW, FUWA, 2-10 axles

Low bed trailer suspension

Mechanical suspension/air suspension

Low bed trailer tires

235/70 R 17.5
245/70 R 17.5
295/60 R 22.5
11 R 22.5
12 R 22.5
315/80 R 22.5

20-120 Ton Lowbed Truck Trailer Dimensions

20-120 Ton Lowbed Semi Truck Trailer

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
