Conveyor Belt Tipper Trailer Vehicle

Dimension: 10300*2500*3500mm(outside)
Capcaity: 60tons heavy duty
Axle: 13tons BPW / SF brand
Landing Gear: JOST/SF brand


Conveyor Belt Tipper Trailer Vehicle
Conveyor Belt Tipper Trailer Vehicle is one new style tipper trailer for dry cargos. Special for particle goods, example corn, wheat, cereals, coal, sands, building stone. The China traditional tipper trailer need flat ground for unloading, otherwise there’s risk of fall down. The conveyor belt tipper trailer could be used under more kinds of working condition. and The tare weight is lighter than traditonal tipper trailer at least 3 tons, which could load more cargo.
For prevent dusty and raining, also could equip steel cover or tarpaulin cover for your conveyor belt tipper trailer. More and more grain companies use our conveyor belt tipper trailer for transporting various grains for now.

What’s the advantage of our conveyor belt tipper trailer? Efficient fast automatically discharging with less with less residue
China conveyor belt tipper trailer has a conveyor belt on the bottom of the trailer bucket that pushes the material out of the back of the trailer at a controlled pace. Unlike the conventional tipper trailer, the bucket does not have to be raised to tipper the materials.

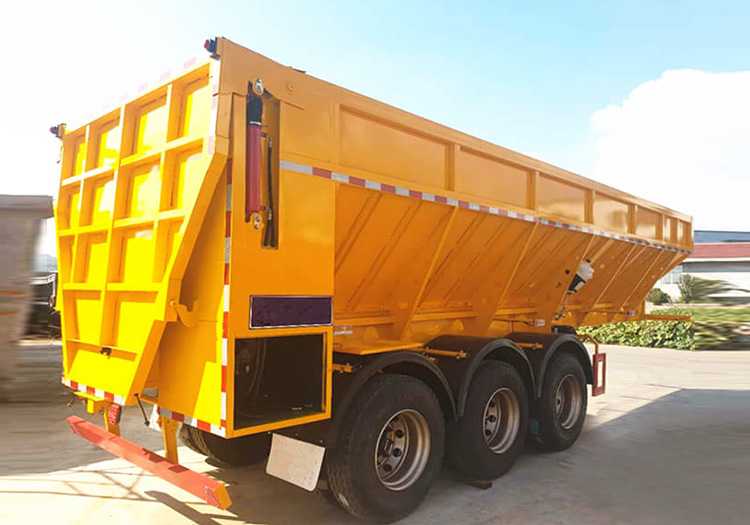

China Conveyor Belt Tipper Trailer

Conveyor Belt Tipper Trailer Vehicle | Semi trailer vehicle

Our conveyor belt tipper trailer bucket empties clean, making it easier for different materials to be transported without having to get inside the bucket to clean it out. The conveyor belt tipper trailer allows the material to be tipper at a controlled pace so that the material can be partially unloaded where it is needed. The rounded tub results in a lower centre of gravity which means a smoother ride and better handling than other trailers. Working under bridges and in confined areas is easier with a live bottom as opposed to a tipper trailer because it can fit anywhere it can drive. Wet or dry materials can be hauled in a conveyor belt tipper trailer.

Conveyor Belt Tipper Trailer Vehicle Specifications
Box Dimension 9300x 2300x 1500mm, 30cubic meters
Payload Max.60T capacity
Tipping System By conveyor belt transport
Main Beam Q345B carbon steel, ‘H” type
Frame Beam(Heavy duty) Upper and lower plate is 14mm and 16mm, Double middle is 8 mm. Height is 500 mm
Box thickness Bottom plate:4mm Side plate:3mm
Axle 3 axles 13tons BPW or FUWA
Landing Gear JOST brand 28tons
King Pin 2.0 or 3.5 inch
Suspension Mechanical suspension reinforced type
Leaf Spring(Strength) 90mm(W)* 16mm(T) *10 Layer
Tires 12R22.5, 315/ 80R22.5
Color/Logo By customer demand

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
